Solution: Kubernetes Control Panel (Hosted)

This solution gives you quick and easy buttons to run kubectl commands, when OliveTin is running on top of Kubernetes (this means OliveTin is "hosted" by Kubernetes). This can be very easy for quick debugging purposes when you cannot type (eg from a mobile phone), or to give junior sysadmins access to do basic predefined tasks.

This use case is enabled by simply providing the OliveTin pod access to talk to the kubernetes API, and using kubectl which is preinstalled with modern versions of OliveTin.

solution k8s hosted

Requirements & Assumptions

Time & skills

  • This should take approximately 10 minutes to configure if you are comfortable in using Kubernetes - using helm, kubectl, and editing basic YAML.

Environment

  • A Kubernetes cluster that is up and running.

  • Kubernetes permissions to create a helm deployment, a ClusterRole and ClusterRoleBinding.

  • A configured Ingress Controller, exposing the for web interface

System

  • Approximately 128m RAM, 1vCPU to run the OliveTin pod.

Install OliveTin on top of Kubernetes

Grant permissions to API

OliveTin needs a ClusterRole that allow it to access resources on your Kubernetes cluster. This is because by default, pods can communicate to the API using the credentials mounted in the pod by the default ServiceAccount, but they don’t have any permissions. This ClusterRole is being created to give permissions to the ServiceAccount. Create the ClusterRole like follows;

  • kubectl cli

  • manifest

user@host: kubectl create clusterrole --resource=pods --verb=get,list,watch olivetin-k8s-permissions
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: olivetin-k8s-permissions
rules:
- apiGroups: [""]
  resources: ["pods"]
  verbs: ["get", "list", "watch"]

Now that the ClusterRole has been created, we need to associate it to a ServiceAccount with a ClusterRoleBinding. Create a cluster role binding;

  • kubectl cli

user@host: kubectl create clusterrolebinding --clusterrole=olivetin-k8s-permissions --serviceaccount myolivetinnamespace:default --namespace myolivetinnamespace olivetin-crb

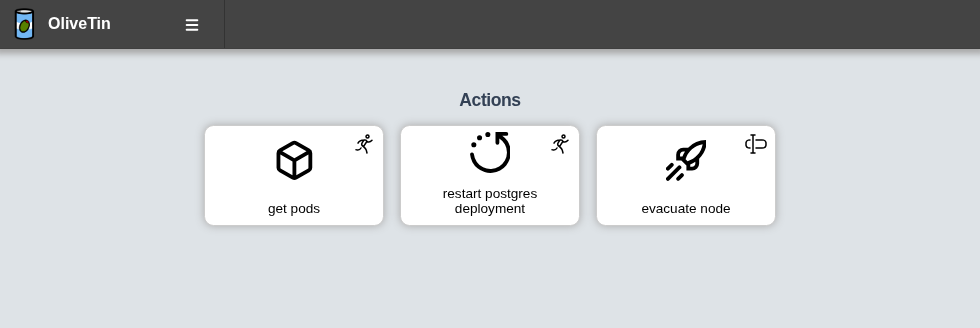

Build a simple kubernetes control planel

Add kubectl job to OliveTin config with kubectl edit cm/olivetin-config -n olivetin;

apiVersion: v1
data:
  config.yaml: |
    defaultPopupOnStart: execution-dialog-output-only

    actions:
      - title: get pods
        icon: <iconify-icon icon="pajamas:pod"></iconify-icon>
        shell: kubectl get pods

      - title: restart postgres deployment
        icon: <iconify-icon icon="pajamas:clear-all"></iconify-icon>
        shell: kubectl rollout restart deployment postgres

      - title: evacuate node
        icon: <iconify-icon icon="pajamas:rocket-launch"></iconify-icon>
        shell: kubectl drain {{ NodeName }} --ignore-daemonsets --delete-emptydir-data
        arguments:
          - name: NodeName
            choices:
              - value: node1
              - value: node2
              - value: node3
kind: ConfigMap
metadata:
  annotations:
    meta.helm.sh/release-name: olivetin
    meta.helm.sh/release-namespace: default
  labels:
    app.kubernetes.io/managed-by: Helm
  name: olivetin-config
  namespace: default

Don’t forget to restart the OliveTin deployment as good measure, because Kubernetes can be slow to update configmaps.
